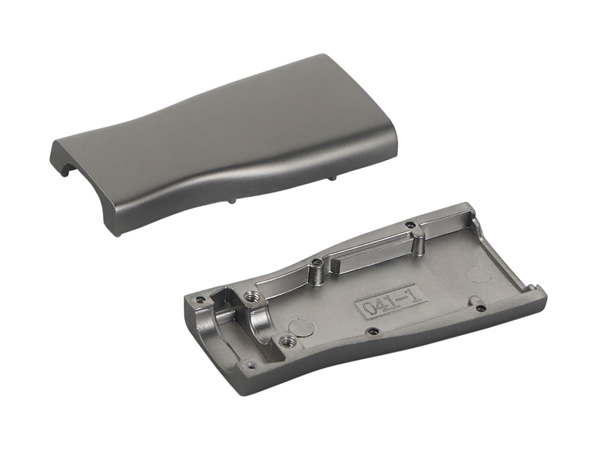

HDMI structural components, as the core components connecting display devices and signal sources, play a crucial role not only in physical connection but also in signal transmission, electromagnetic compatibility, device collaboration, and user experience optimization. The following is a detailed analysis of its core function:

I. Physical Connection and Mechanical Support: The foundation for stable Transmission

Standardized interface form

HDMI structural components adopt A unified interface standard (such as the 19-pin rectangular wide port of Type A) to ensure compatibility with devices of different brands (such as televisions, game consoles, and computers). The metal casing wraps the interface, providing mechanical strength and preventing damage to the internal contacts during plugging and unplugging.

Durability design

Contact material: Phosphor bronze base material (hardness ≥200HV) combined with gold plating layer (above 0.2μm), reducing contact resistance and supporting tens of thousands of insertings.

Shell process: Zinc alloy die-casting (such as ZAMAK-3) or high-strength plastic (such as PA46), with UL94 V-0 flame retardant certification, ensuring no loosening or deformation during long-term use.

Ii. Signal Transmission and Integrity Assurance: Lossless transmission of high-definition content

Multi-channel parallel transmission

TMDS channel: 3 pairs of differential signals transmit red, green and blue video signals, and 1 pair of differential signals transmit clock signals. Dc balance is achieved through 8b/10b encoding to reduce signal jitter.

Audio embedding: Utilizing redundant positions in video channels to transmit multi-channel audio (such as Dolby TrueHD) without the need for additional cables.

Auxiliary channel: DDC (I²C bus) reads the EDID information of the display device and negotiates the best resolution. The CEC channel enables device interlocking control (such as using a TV remote control to turn on and off a game console).

High-speed signal optimization

Impedance control: Differential impedance is strictly controlled at 100Ω±10%, and signal reflection is avoided through arc corner and ground wrapping processing.

Common-mode suppression: Add common-mode chokes (such as TDK ACM2012) to filter out power supply noise and external interference.

ESD protection: Integrated TVS array (supporting 8kV air discharge), protecting the internal circuit from electrostatic shock.

Iii. Electromagnetic Compatibility (EMC) Design: Suppressing Interference and Radiation

Fully shielded structure

Metal casing: 360° fully enclosed design, creating a Faraday cage effect to block external electromagnetic interference (such as Wi-Fi and Bluetooth signals).

EMI spring: Elastic contacts are designed at the contact point between the housing and the PCB to ensure grounding continuity and reduce radiation leakage.

The power supply and signal are isolated

Independent power supply path: The +5V power supply line is separated from the signal line, and the power supply ripple is suppressed through a filter capacitor (0.1μF).

HPD circuit optimization: A pull-up resistor (10kΩ) is combined with a filter capacitor to prevent false trigger signals during hot plugging.

Iv. Equipment Collaboration and Function Expansion: Enhancing User Experience

Intelligent negotiation and self-adaptation

EDID reading: The source device acquires the parameters of the display device (such as resolution and color gamut) through the DDC channel and automatically adjusts the output format.

HDCP encryption: Supports digital content protection (such as HDCP 2.3 in HDMI 2.1), preventing illegal copying of high-definition content.

Multi-functional integration

ARC/eARC audio return: Reverse transmit TV audio to the audio system, simplifying home theater wiring.

VRR Variable refresh Rate: Dynamically adjust the display refresh rate to eliminate game screen tearing (HDMI 2.1 support required).

ALLM Auto Low Latency Mode: The game console and TV automatically switch to low latency mode to enhance the operation response speed.

V. Version Evolution and Performance Upgrade: Adapting to Technological Development Trends

The bandwidth continues to increase.

HDMI 1.4:10.2 Gbps bandwidth, supports 4K@30Hz.

HDMI 2.0:18 Gbps bandwidth, supports 4K@60Hz, HDR.

HDMI 2.1:48 Gbps bandwidth, supports 8K@60Hz, dynamic HDR, VRR.

New function introduction

HEAC channel: Integrates Ethernet and audio backhaul to achieve device interconnection and content sharing.

QMS Fast Media Switching: Eliminate black screen time when switching video sources (such as from streaming media to games).

Vi. Typical Application Scenarios

Home theater: Connect Blu-ray players, AV receivers and TVS through HDMI components to achieve synchronous transmission of 4K HDR video and Dolby Atmos audio.

Gaming and entertainment: Supports high refresh rates (such as 120Hz) and low latency (such as ALLM) to enhance the gaming experience.

Business display: In meeting rooms or exhibition halls, high-definition signals are transmitted to multiple display screens through long-distance HDMI cables (such as optical fiber HDMI).

Industrial control: In automated equipment, the stability and anti-interference capability of HDMI are utilized to transmit monitoring images.

Summary

HDMI structural components, through standardized design, high-speed signal optimization, electromagnetic compatibility processing and multi-functional integration, have become the core hub for high-definition audio and video transmission. Its role is not only reflected in the physical connection level, but also through continuous technological upgrades (such as the 48 Gbps bandwidth of HDMI 2.1) and functional expansions (such as VRR, QMS), it meets users' ultimate pursuit of picture quality, sound quality and interaction experience.
