Iii. Wiring and Routing Design

Stay away from interference sources

HDMI cables should be kept away from strong electromagnetic interference sources such as power cords, transformers, and wireless routers. It is recommended to maintain a distance of at least 30 centimeters.

Avoid parallel wiring with high-voltage cables. If necessary, use metal pipes or shielding slots for isolation.

Plan the path reasonably

The cable routing should be as short and straight as possible, minimizing bending and entanglement to avoid the formation of signal loops.

The bending radius should be greater than five times the diameter of the cable (for example, for a cable with a diameter of 6mm, the bending radius should be ≥30mm) to prevent the internal wires from breaking.

Fixation and protection

Fix the cables with cable ties or wire clamps to prevent the joints from loosening due to suspended shaking.

When wiring inside the wall, PVC pipes should be run to protect the cables from being damaged by nails or screws.

Iv. Equipment Setup and Commissioning

Select the correct input source

Switch to the corresponding HDMI input channel (such as HDMI1 or HDMI2) via the remote control of the TV or monitor to ensure that the signal source matches the device.

For some devices, the HDMI function needs to be manually enabled in the Settings menu (such as the "HDMI CEC" control for game consoles).

Adjust the resolution and refresh rate

Set the appropriate resolution and refresh rate (such as 4K@60Hz, 1080P@120Hz) based on the device performance to avoid screen tearing or black screen caused by overclocking.

When enabling advanced features such as HDR or Dolby Vision, it is necessary to confirm that both the cables and the equipment support the relevant protocols.

Test signal stability

Play high-definition videos or run 3D games and observe whether the picture is smooth, without lag or screen flickering.

Test whether the audio output is normal and confirm that it supports multi-channel audio formats (such as Dolby TrueHD, DTS-HD).

V. Environment and Usage Maintenance

Control temperature and humidity

Avoid using HDMI devices in high-temperature (>40℃) or humid (humidity >80%) environments to prevent interface oxidation or aging of the cable insulation layer.

When not in use for a long time, it is recommended to unplug the cable and store it in a dry and cool place.

Clean the interface regularly

Use a cotton swab dipped in a small amount of alcohol (with a concentration of less than 75%) to gently wipe the metal contacts of the HDMI interface to remove dust or oxide layers.

Avoid using water or corrosive cleaners to prevent damage to the interface.

Anti-static measures

When operating in dry seasons or carpet environments, anti-static wristbands can be worn to prevent static electricity from damaging the interface chips.

Before plugging or unplugging a cable, touch a metal object first to release static electricity.

Vi. Precautions for Special Scenarios

Wall-mounted installation

When wall-mounted TVS, it is necessary to reserve space for the bending of HDMI cables to prevent internal cable breakage due to stretching.

When using concealed cable trays, it is necessary to ensure that the cables can be easily pulled out for easy maintenance in the future.

Game device connection

When connecting game consoles (such as PS5, Xbox Series X), it is recommended to enable "Game Mode" to reduce input lag.

Confirm that the cable supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode) to enhance the gaming experience.

Business display application

In a multi-screen splicing system, an HDMI distributor that supports EDID management should be used to ensure that all displays display the same content synchronously.

When transmitting over long distances, it is recommended to use an HDMI signal booster or fiber optic converter to avoid signal attenuation.

Application scenarios

Power transmission: Automotive battery connectors need to carry large currents, and the contacts should be made of low-resistance materials and optimized for heat dissipation.

High-speed signal: The USB 3.0 connector achieves 5Gbps data transmission through a differential pair design.

3. Mechanical Support and Environmental Protection: The dual Role of structural design

The connector housing and insulator not only provide physical support but also undertake the following functions:

Mechanical fixation: Prevent accidental disconnection through locking devices (such as threads, clamps).

Environmental isolation

Sealed design: The IP67-rated connector is dust-proof and water-proof, making it suitable for outdoor equipment.

Shielding layer: The RF connector adopts a metal casing to shield electromagnetic interference and ensure signal purity.

Insulation protection: Insulators isolate different contacts to prevent short circuits.

Case: Industrial Ethernet connectors (such as M12) feature metal casings and threaded locking, making them suitable for vibration environments.

4. Signal integrity optimization: The key to high-speed transmission

As the data rate increases, connectors need to address the issue of signal distortion:

Impedance matching: By controlling the contact spacing and the characteristics of the insulating material, the characteristic impedance (such as 50Ω) is maintained to reduce reflection.

Low insertion loss design: Optimize the shape and material of the contacts to reduce signal transmission loss.

Anti-interference technology: For instance, optical fiber connectors transmit optical signals, completely avoiding electromagnetic interference.

Application: The backplane connector for data centers supports data transmission of over 100Gbps and requires strict control over impedance and insertion loss.

5. Separation and Interruption: Controllable disconnection mechanism

When the connector separates, the electrical connection is interrupted. The design must ensure that:

Safe disconnection: Avoid arcing (such as when high-voltage connectors adopt a slow-break design).

Anti-misinsertion: Prevent incorrect connections through keyways, color coding or mechanical locks.

Case: The aviation connector adopts an anti-misinsertion keyway to ensure correct connection in extreme environments.

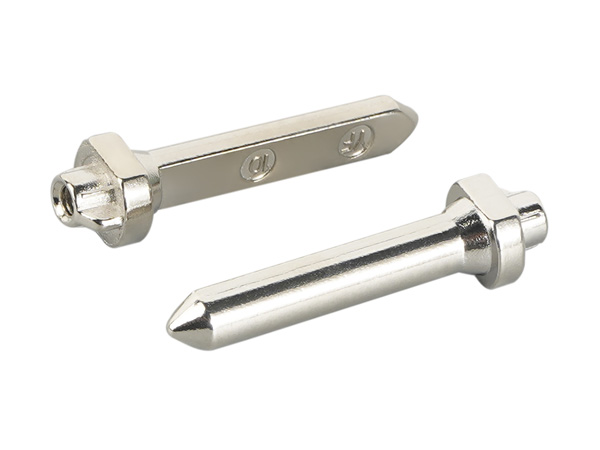

Summary: The working principle framework of connectors

Contact establishment: Physical connection of metal contacts forms an electrical path.

Signal transmission: By optimizing materials, structures and environmental designs, ensure the quality of current/signals.

Mechanical support: The housing and locking device provide a stable connection.

Environmental adaptability: The sealing, shielding and insulation designs are designed to cope with harsh conditions.

Safe disconnection: A controllable separation mechanism prevents signal interruption or equipment damage.

As the "nerve hub" of electronic systems, connectors integrate electrical, mechanical and materials science in their working principle. Through precise design, they achieve efficient and reliable signal and power transmission, supporting modern development in fields ranging from consumer electronics to aerospace.
